MS0402CHP

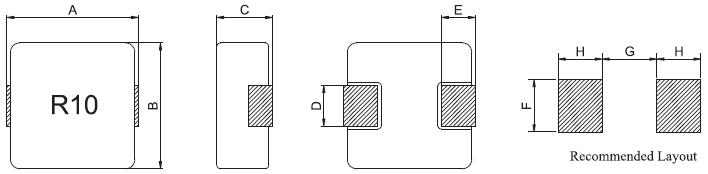

A | B | C Max. | D | E | F Nom. | G Nom. | H Nom. | |
4.7±0.3 | 4.2±0.3 | 2.20 | 1.5±0.2 | 1.2±0.3 | 2.00 | 1.60 | 1.80 |
Part Number | Inductance LO(uH) | DCR (mΩ)Max. | SRF (MHz)Typ. | Isat (A)Max. | Irms (A)Max. | |
MS0402CHP-R10M-RA | 0.10 | 5.00 | 327.00 | 35.00 | 11.00 | |
MS0402CHP-R22M-RA | 0.22 | 8.60 | 151.00 | 24.00 | 13.00 | |
MS0402CHP-R47M-RA | 0.47 | 18.00 | 97.00 | 11.50 | 5.60 | |
MS0402CHP-1R0M-RA | 1.00 | 37.00 | 90.00 | 8.50 | 3.75 | |
MS0402CHP-1R5M-RA | 1.50 | 46.30 | 90.00 | 6.10 | 5.10 | |
MS0402CHP-2R2M-RA | 2.20 | 90.00 | 39.00 | 6.00 | 2.85 |
