MS0402C

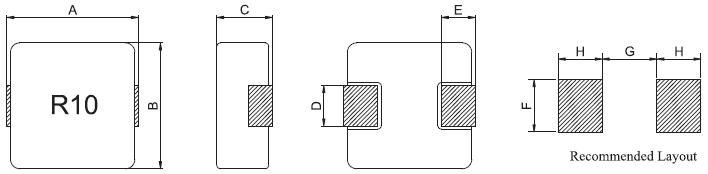

A | B | C Max. | D | E | F Nom. | G Nom. | H Nom. | |
4.7±0.3 | 4.2±0.3 | 2.20 | 1.5±0.2 | 1.2±0.3 | 2.00 | 1.60 | 1.80 |
Part Number | Inductance LO(uH) | DCR (mΩ)Max. | SRF (MHz)Typ. | Isat (A)Max. | Irms (A)Max. | |
MS0402C-R10M-RA | 0.10 | 4.50 | 299.00 | 12.00 | 12.00 | |
MS0402C-R22M-RA | 0.22 | 7.00 | 158.00 | 9.00 | 9.00 | |
MS0402C-R47M-RA | 0.47 | 16.00 | 97.00 | 7.00 | 7.00 | |
MS0402C-1R0M-RA | 1.00 | 27.00 | 64.00 | 5.00 | 4.50 | |
MS0402C-2R2M-RA | 2.20 | 68.00 | 40.00 | 3.25 | 3.25 | |
MS0402C-3R3M-RA | 3.30 | 94.30 | 35.00 | 2.20 | 2.70 | |
MS0402C-4R7M-RA | 4.70 | 105.00 | 29.00 | 1.75 | 1.70 |
